LX-60-MY-22
- CategoryElectric Dirt Bikes
- Vehicle Dimensions1630 × 685 × 1120 mm
- Wheelbase1150 mm
- Seat Height760–770 mm
- Minimum Ground Clearance280 mm
- Maximum Speed55–60 km/h
- Range50 km
- Battery60V 25Ah ternary lithium battery
- Maximum Load Capacity150 kg

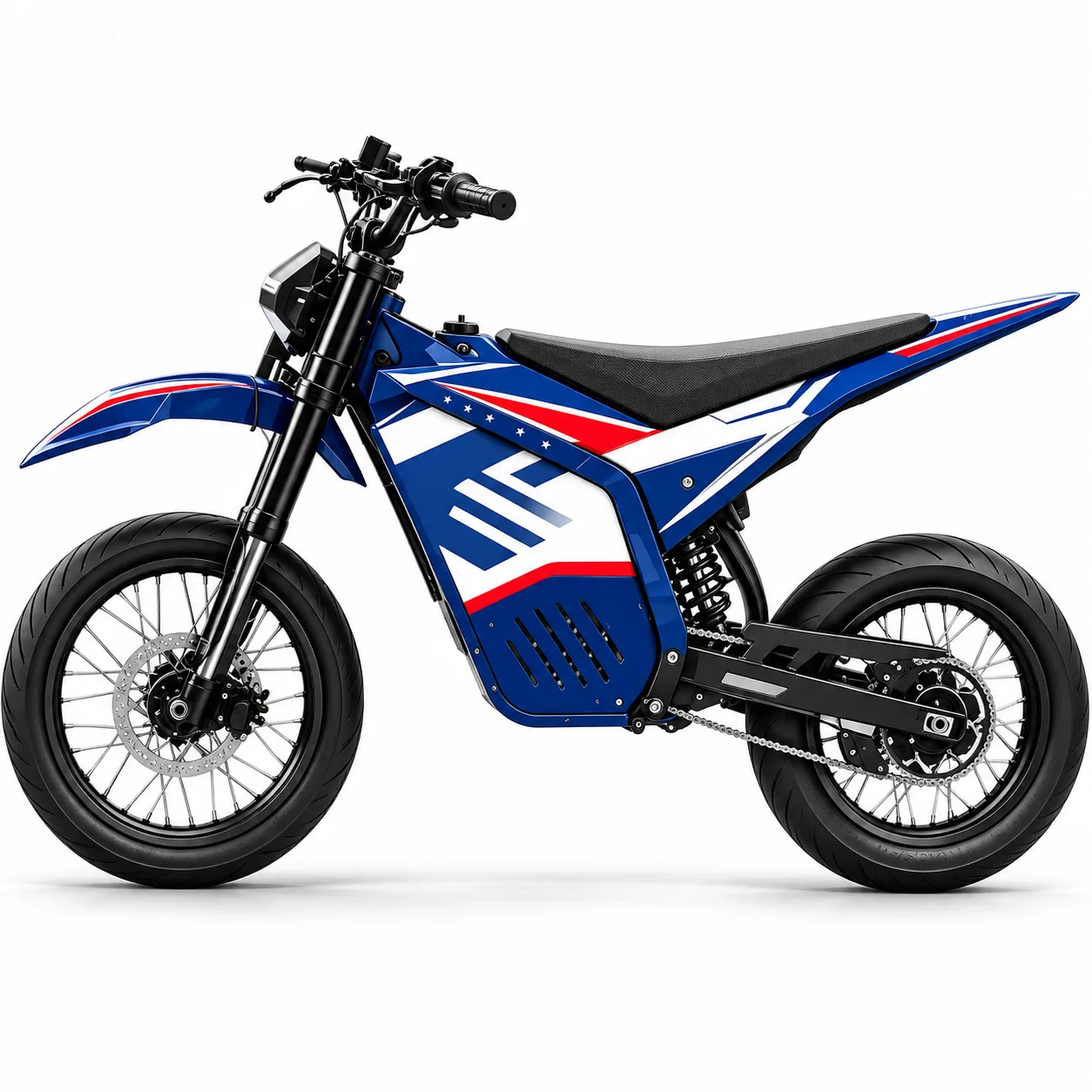

LX-60-MY-22 60V Electric Motorcycle, Road Tires
The LX-60-MY-22 is a 60V road-tire electric motorcycle with a 25Ah ternary lithium battery and a front headlight. Its 17-inch front / 14-inch rear wheels and 760–770 mm seat height define the MY-22 configuration.
Configuration highlights
- 60V battery and mid-drive motor: The battery is specified at 1500Wh. Motor output is 1500W rated and 4500W peak, with a listed 36–88V / 60A controller.
- Tires and lighting: Front 70/100-17 and rear 90/100-14 road tires are fitted. A front headlight and left-mounted LED display are included.
- Chassis specification: The iron frame has a 1150 mm wheelbase and 280 mm minimum ground clearance. Braking uses two-piston hydraulic disc brakes.
- Load and logistics: Rated load is 100 kg and maximum load is 150 kg. Net weight is 61 kg; the export carton measures 138 × 38.2 × 70 cm with suspension compressed and tires fitted.
Complete technical specifications
| Parameter | Specification |
|---|---|
| Tire Configuration | Road tires |
| Vehicle Dimensions | 1630 × 685 × 1120 mm |
| Wheelbase | 1150 mm |
| Seat Height | 760–770 mm |
| Minimum Ground Clearance | 280 mm |
| Maximum Speed | 55–60 km/h |
| Range | 50 km |
| Rated Load Capacity | 100 kg |
| Maximum Load Capacity | 150 kg |
| Battery Type | 60V 25Ah China-sourced ternary lithium battery |
| Battery Energy | 1500 Wh |
| Battery Cycle Life | 500 cycles; ≥80% remaining capacity |
| Motor Type | Mid-drive motor |
| Rated Motor Power | 1500 W |
| Peak Motor Power | 4500 W |
| Controller | 36–88V / 60A |
| Charger | 5A charger (CE certified) |
| Charging Time | 6 hours (5A charger) |
| Display | Left-mounted LED display |
| Headlight | Included |
| Frame Material | Iron frame |
| Frame Finish | Powder coating |
| Front / Rear Tires | Front: 70/100-17 / Rear: 90/100-14 |
| Front Suspension | Inverted aluminum-alloy front fork; non-adjustable damping |
| Rear Suspension | China-sourced hydraulic shock absorber; non-adjustable damping |
| Brakes | Two-piston hydraulic disc brakes; cast-iron discs |
| Saddle | Four-layer elastic leather with high-elasticity sponge |
| Export Packaging | Oil-film carton with EPE foam |
| Gross / Net Weight | 68 kg / 61 kg |
| Colors | Black / Orange / Custom colors |
| Lead Time | 30 days |
| 40HQ Container Loading Quantity | 174 units |
| Packaging Dimensions | 138 × 38.2 × 70 cm; suspension compressed, tires fitted |
Speed, range, charging time and battery-life figures are listed specifications. Actual results vary with rider load, terrain, riding speed, temperature and battery condition.
Compare related configurations
The LX-72-MY-21 uses a 72V 25Ah battery, 2000W rated motor and off-road tires. It does not include a headlight. Compare the exact MY-21 and MY-22 configurations before ordering. See the LX-72-MY-21 specification or browse all KMS electric motorcycle models.
Frequently asked questions
What are the listed speed and range?
Maximum speed is specified at 55–60 km/h and range at 50 km. Actual results depend on riding and battery conditions.
Does the headlight confirm public-road approval?
No. A headlight and road tires describe fitted equipment. Confirm vehicle approval documents and local requirements separately for the intended market.
Request a quotation
Contact KMS Motors (Yongkang Komoshi Technology Co., Ltd.) with model LX-60-MY-22, quantity, preferred colors and destination country or port. Ask the team to confirm the final configuration, current lead time and export packing for your order. Contact KMS Motors.
